Hand-Held Hydraulic pressure calibration pump

FOB Reference Price:Get Latest Price
$150.20 - $300.20 / Units | 1 Unit/Units (Min. Order)
Usage:
Process Testing Machine
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Yunyi
Model Number:
Y060
Power:
Hydraulic
Item:
Hand-Held Hydraulic pressure calibration pump
Output pressure::
0~25MPa
weight::
≤0.8Kg
Temperature:::
0~40°Cb
Relative humidity:
≤100%
Usage:
Pressure source of pressure equipment
Material:
Stainless steel
Pressure type:
pneumatic type
Medium:
Air
Operation:
Manual
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Hydraulic pressure calibration pump
Packaging & Delivery
Packaging Details
Hand-Held Hydraulic pressure calibration pump
Standard export package or as customer's requirement
Port
xian
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Yunyi Instrument
Product Description

Description of Hand-Held Hydraulic pressure calibration pump

Hand-Held Hydraulic pressure calibration pump is a portable pressure pump. This pressure calibration pump is for field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.The hydraulic pressure calibration pump also provide pressure source correction table for pressure measuring instrument manufacturer. The hand-held calibration pump for all kinds of pressure transmitter within every 60 Mpa, Pressure sensor and all kinds of pressure gauges Check all available hand pressure pum.

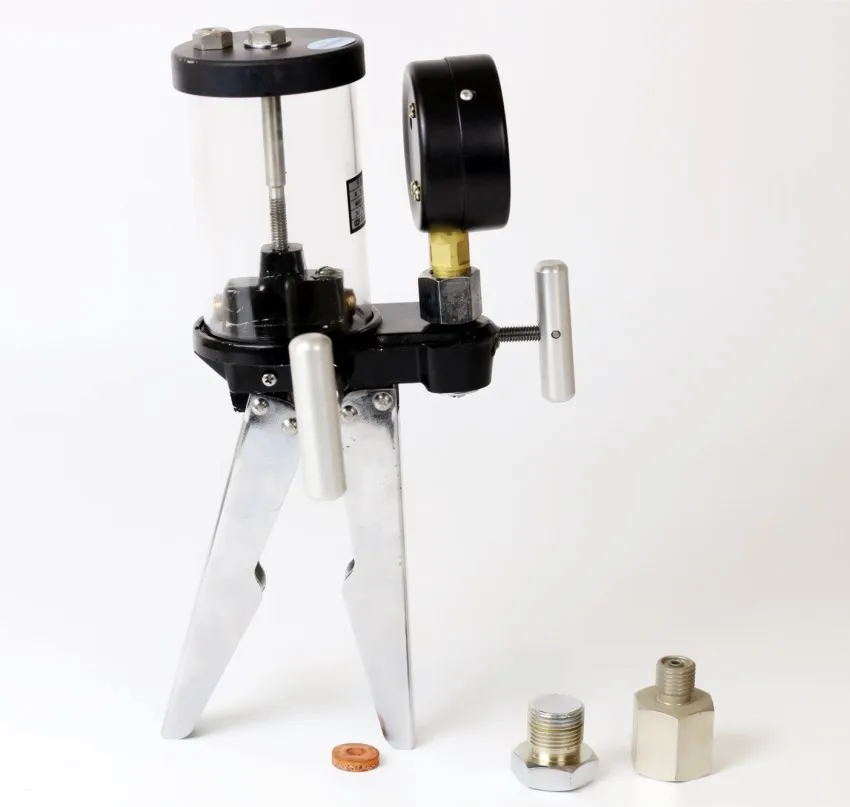

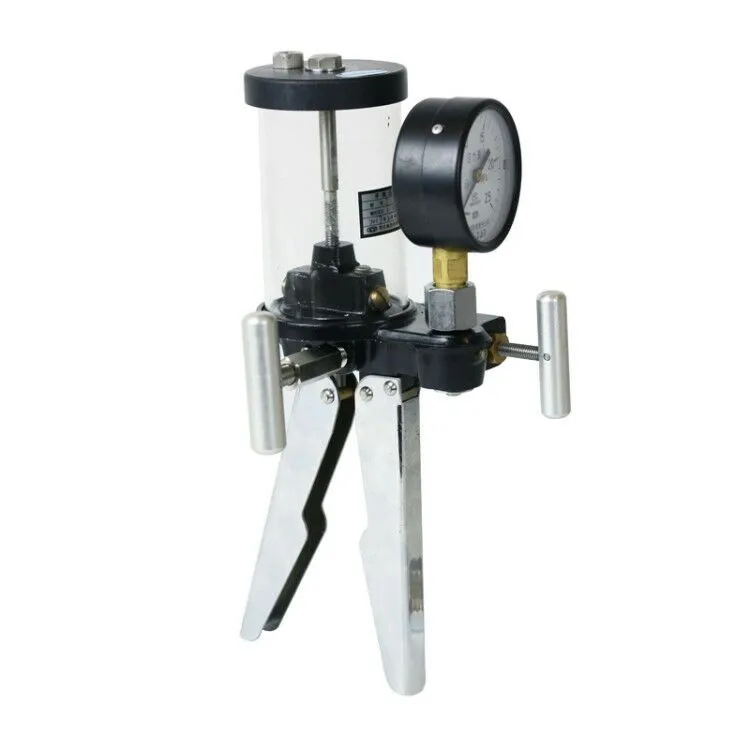

Detailed Images
Specification
Item
Hand-Held Hydraulic pressure calibration pump
output pressure range
Y039: 0-1.6MPa
Y060: 0-25MPa
Y061: -0.1~0MPa
operating temperature
-20~50C
operating relative humidity
~100%
flexible hose connector
M20*1.5 female
master gage connector
1/4NPT male
dimensions
235×120×65 230 x 110 x 60
weight
1..6kg ~2.5kg
Accessories
500 mm long plastic hose and a leatherette carrying bag
Outlet threads
1/4 NPT, or to custom request
Features

Features of Hand-Held Hydraulic pressure calibration pump

1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing ,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.
