manual hydrostatic test pump / hand pressure calibrator

FOB Reference Price:Get Latest Price
$160.20 - $300.20 / Units | 1 Unit/Units (Min. Order)
Usage:
Process Testing Machine
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China
Brand Name:
Yunyi
Model Number:
YFP-1.6/2.5/2.0
Power:
hand manual
Item:
manual hydrostatic test pump / hand pressure calibrator
Pressure type:
Pneumatic pressure
Medium:
Air
Operation:
Hand manual
pressure range:
-1bar~2.5MPa
Material:
Stainless steel
Thread:
M20x1.5, 1/4NPT
Application:
pressure gauge, pressure transmitter
Weight:
1.5kg
Warranty:
12 months
Supply Ability
Supply Ability:
500 Unit/Units per Month manual hydrostatic test pump / hand pressure calibrator
Packaging & Delivery
Packaging Details
manual hydrostatic test pump / hand pressure calibrator
Antistatic plastic bags and Corrugated box.
Other package mode also can be customized.
Port
shenzhen/shanghai
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 20 To be negotiated
Video Description
Pressure Calibrator
Product Description

Description of manual hydrostatic test pump / hand pressure calibrator

YFP type manual hydrostatic test pump / hand pressure calibrator is a quick hand pressure source, the hand test pump can easily realize vacuum and add positive pressure through adjust pressure vacuum valve, this hand pressure calibrator suitable to calibrate kinds of differential pressure, vacuum, vacuum pressure and pressure instrument, the hydrostatic test pump also can be used to be a pressure vacuum source of the above pressure instrument. The manual hand pressure calibrator characteristic of compact size, light weight, easy to operate and convenient to carry.

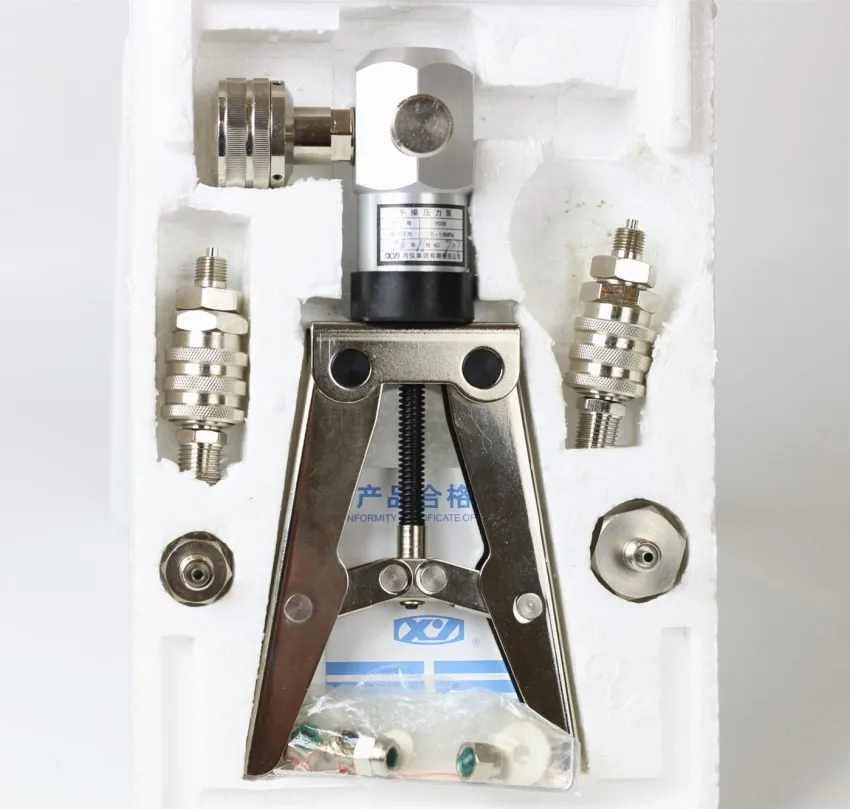

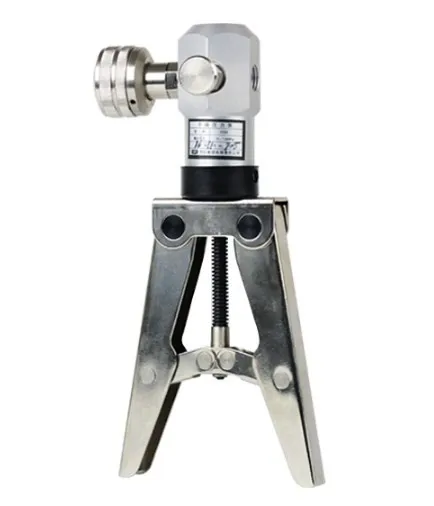

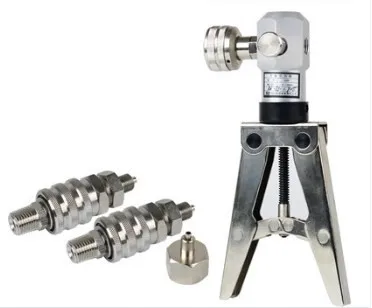

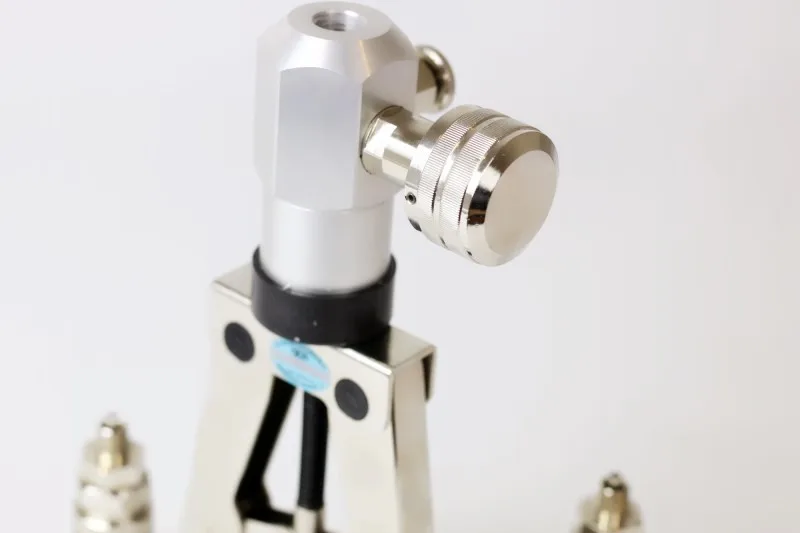

Detailed Images
Specification
Item
YFP type manual hydrostatic test pump / hand pressure calibrator
output pressure range
Y039: 0-1.6MPa  (penumatic)
Y061: -0.1~0MPa (penumatic)
Y060: 0-25MPa (Hydraulic)
YFP-1.6: -0.088~1.6MPa (penumatic)
YFP-2.0: -0.088~2.0MPa (penumatic)
YFP-2.5: -0.088~2.5MPa (penumatic)
operating temperature
-20~50C
operating relative humidity
~100%
flexible hose connector
M20*1.5 female
master gage connector
1/4NPT male
dimensions
235×120×65 230 x 110 x 60
weight
1..6kg ~2.5kg
Accessories
500 mm long plastic hose and a leatherette carrying bag
Outlet threads
1/4 NPT, or to custom request
Vernier-adjuster
micro-adjustable, volume control
application
pressure gauge, pressure transmitter, differential pressure transmitter
Features

Features of manual hydrostatic test pump / hand pressure calibrator

1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc.
