diaphragm water pressure reducing valve

FOB Reference Price:Get Latest Price
$120.20 - $300.00 / Units | 1 Unit/Units (Min. Order)
Type:
Pressure Reducing Control Valves Pressure Regulators
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Report Suspicious Activity
Overview
Quick Details
Size:
1/4in
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Yunyi
Model Number:
YY-BPR
Application:
can be used in gas or liquid
Material:
Stainless Steel
Temperature of Media:
High Temperature
Pressure:
High Pressure
Power:
According to the condition
Media:
gas or liquid
Port Size:
Customized
Structure:
Diaphragm, Diaphragm
Standard or Nonstandard:
Standard
item:
low cost diaphragm water pressure reducing valve
Maximum inlet pressure:
6000 psi (413.7 bar)
Outlet pressure range:
0 to 500 psi
flow coefficient (Cv):
0.025 0.06(standard) 0.2 0.5
weight:
0.86kg
port:
beijing,shanghai,tianjin,shenzhen
Original:
china, xian
material:
Stainless steel
Supply Ability
Supply Ability:
500 Unit/Units per Week diaphragm water pressure reducing valve
Packaging & Delivery
Packaging Details
diaphragm water pressure reducing valve
Corrugated cardboard boxes outer and foam paper inner
packing size: 4x5x14cm
Port
shenzhen, shanghai, beijing, tianjin
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Video Description
Pressure Regulator
Product Description

Description of diaphragm water pressure reducing valve

diaphragm water pressure reducing valve with gauge with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

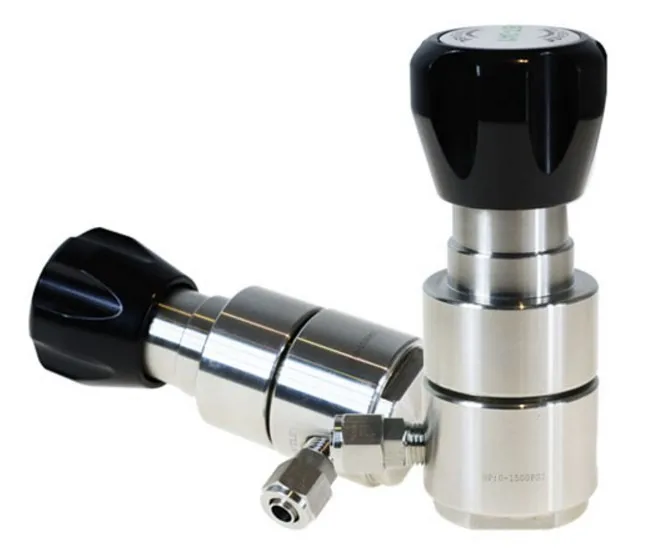

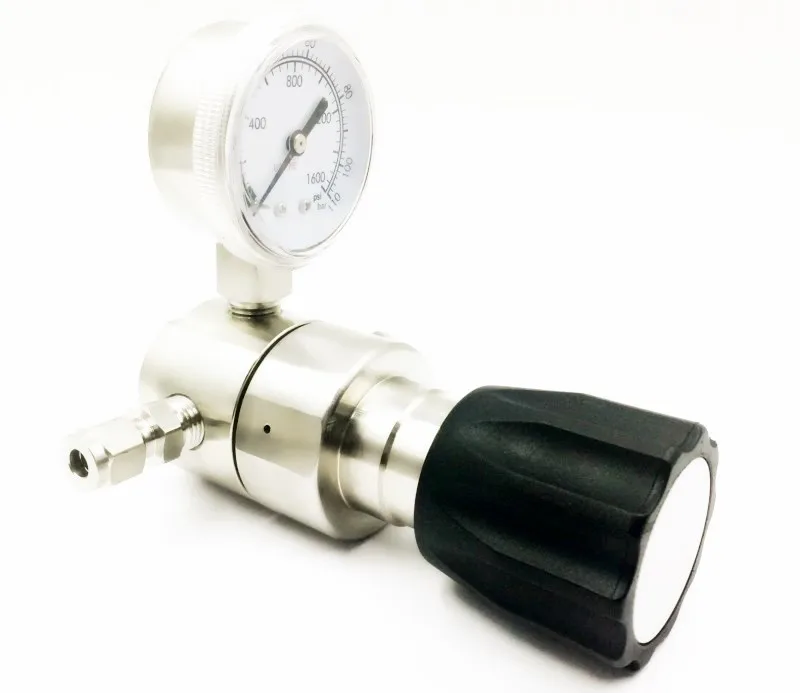

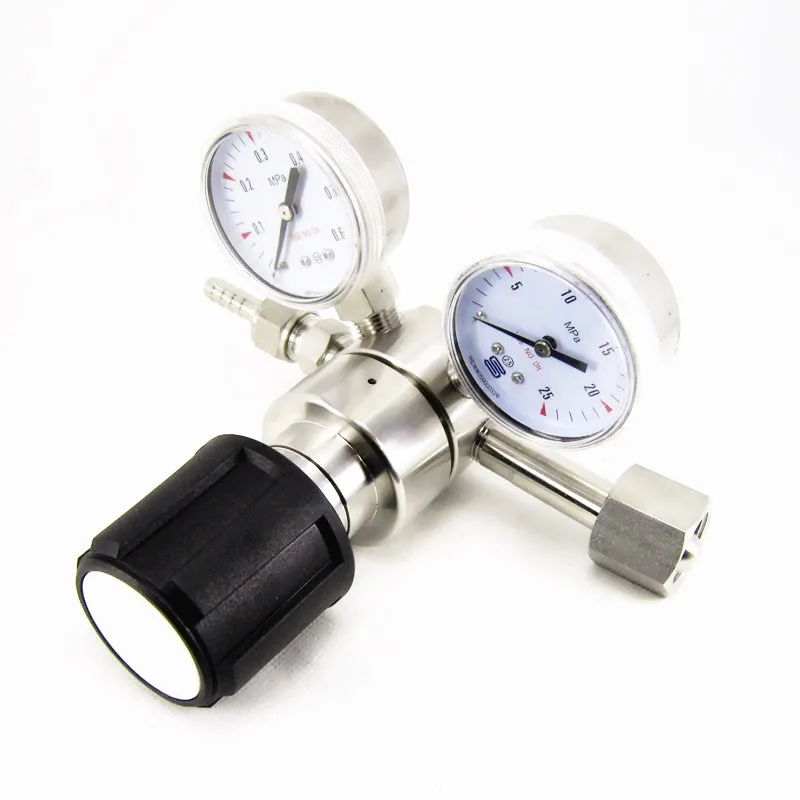

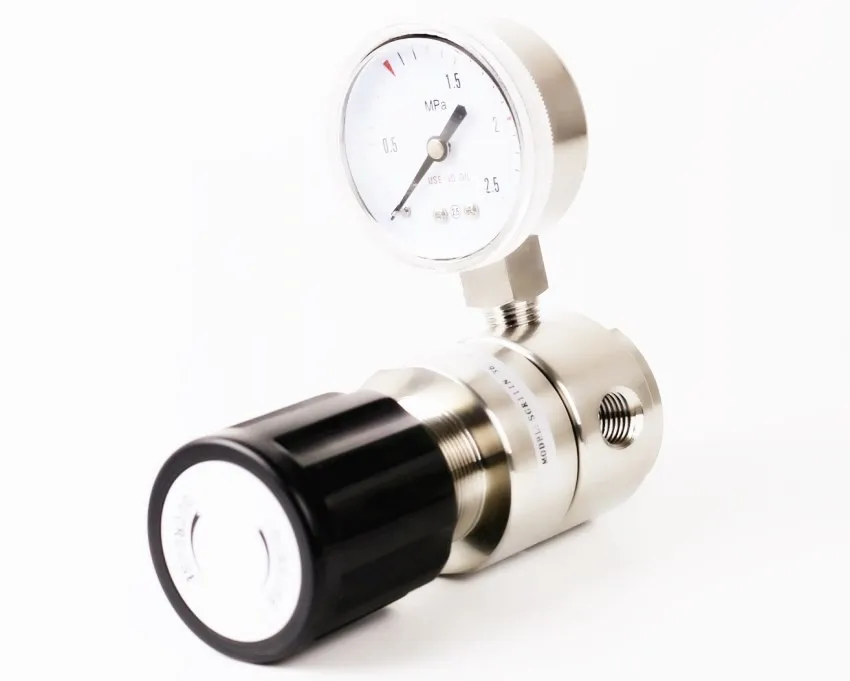

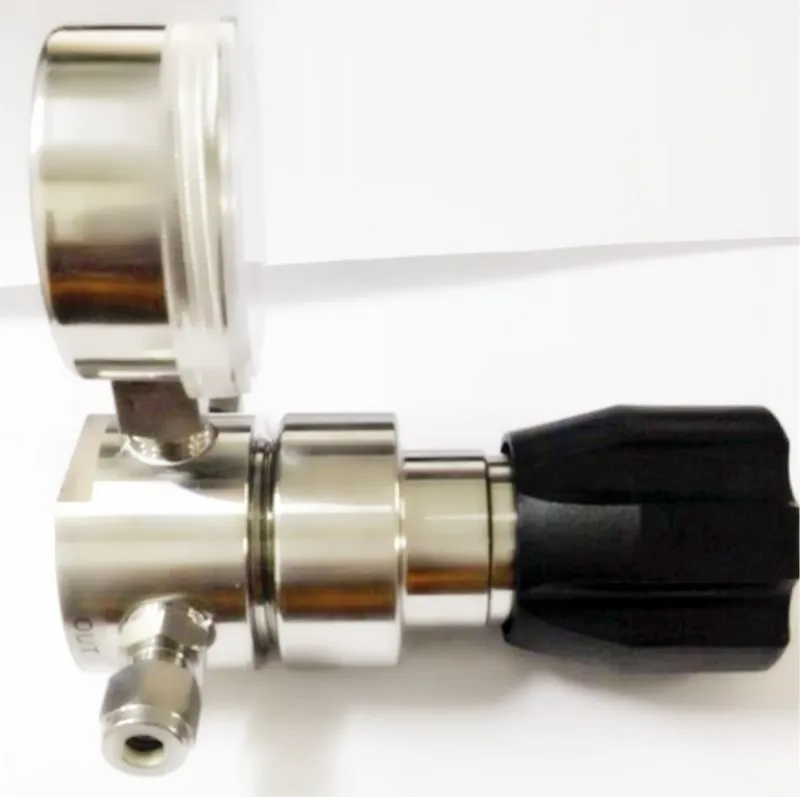

Detailed Images
Specification
Item
diaphragm water pressure reducing valve
Max pressure range
500, 3000 psig, 6000Psi
Output pressure
0-25, 0-50, 0-100, 0-150, 0-250 psig
Structure
Diraphragm
Design Proof Pressure
150% of rated inlet
Parent interface thread
NPT "1/4 (F)
Applicable temperature
40℃~74℃(-40℉~165℉)
Internal leak rate
2 x 10-8atm.cc/sec He
Flow Capacity
Cv=1.0 Cv=1.8 (Optional)
Body material
316L
Seat material
PCTFE, Vespel
Piston
316L
O-rings
Viton
Application

Applicaltion of diaphragm water pressure reducing valve

• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment

Features

Features of diaphragm water pressure reducing valve

1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting
