hydraulic hand pump pressure calibrator

FOB Reference Price:Get Latest Price
US $601.1-3,125 / Unit | 1 Unit/Units (Min. Order)
Supply Ability:
500 Unit/Units per Month
Port:
Dalian
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Yunyi
Model Number:
XY-2003
Power:
Hydraulic
Usage:
Universal Testing Machine
Name::
hydraulic hand pump pressure calibrator
Pressure range:
0-250Mpa
Minimum controllable adjustment degree::
1kPa
Volume::
410 * 310 * 120 (mm)
Weight::
10kg
Packaging & Delivery
Packaging Details
hydraulic hand pump pressure calibrator
Package:Wooden box
60*24*44cm,
21.8kg
Delivery Time
7days







Description pressure calibrator

XY-2003 high-pressure water medium pressure source is our newly developed products. This product is made of high quality imported stainless steel, advanced sealing technology, special processing technology, and ultrasonic professional cleaning completely eliminate the oil, the industry is working to ban oil metering Meter Verification maintenance of the necessary equipment.
Mainly used in aviation, aerospace, food, health, military, metallurgy and other departments calibration measurement instrumentation ban oil use.

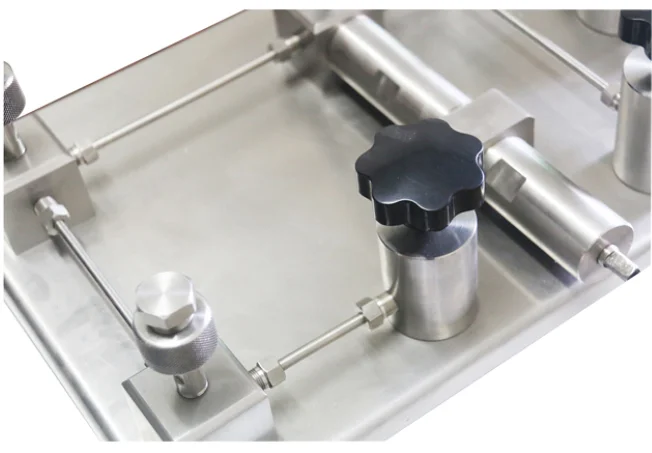

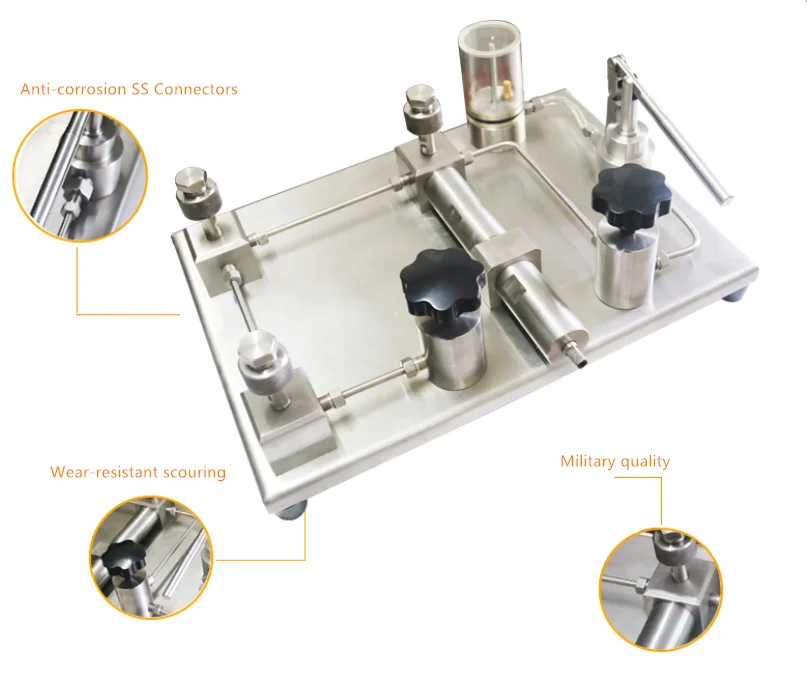

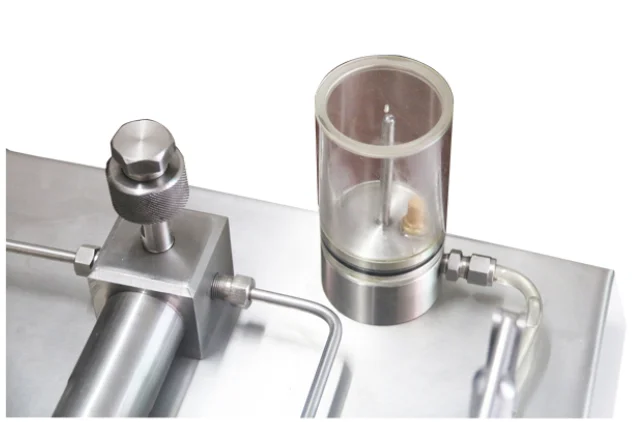

Detailed Images pressure calibrator



Specification pressure calibrator

Pressure range: 0-250MPa (select the range)
Minimum controllable adjustment degree: 1kPa
Size: 410 × 310 × 120 (mm)
Weight: 10kg

Model

Pressure

Min.Adjust

Medium



XY-2003



0-60 MPa

0.1KPa

Oil or water

0-100 MPa

0.1KPa

Oil or water

0-160 MPa

0.2KPa

Oil or water

0-200 MPa

0.2KPa

Oil or water

0-250 MPa

0.3KPa

Oil





 Features pressure calibrator

Pressure transmission medium is clean and free of impurities in the water, do not pollute the environment
Out of the water isolation, to avoid the post-oil isolator isolation membrane rupture pressure source into the oil pollution and is the subject of hidden dangers after the meter.
Special screw-down device, so check back boost and smooth, easy to operate.
Solve the traditional cutoff valve control back to the subject of instability.
Tiled open structure, easy maintenance and repair.
Unique exhaust mechanism, no pressure, and the pressure does not create difficulties phenomenon.
Media efflux, avoiding contamination of the recycling dirty media pressure source.



Selection Guide pressure calibrator

1. Pressure range

2.Quantities
