Micro differential pressure transmitter pressure sensor 4-20ma 0-10VDC RS485

  • 1 - 19 Units
    $88.20
  • 20 - 99 Units
    $78.20
  • >=100 Units
    $67.20
Material:
ABS plastic
Accuracy:
1.0%FS
Type:
differential pressure transmitter
Pressure Range:
from 0~±50Pa to 0~±10000Pa
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Units)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Yunyi
Model Number:
FM-112
Name:
Micro differential pressure transmitter pressure sensor
Accuracy:
±1.0%FS
Compensated temperatures:
-10~+60℃
Zero/Full range deviation %FS/℃:
±0.01
Output signal:
0~5/10VDC\3-wire 4~20mA\2-wire
Supply voltage:
0~5/10VDC\16~30VDC 4~20mA\10~30VDC
Ambient temperature::
-10~60℃
Measure range:
from 0~±50Pa to 0~±10000Pa
Warranty:
12 months
Application:
clean air gas
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Micro differential pressure transmitter pressure sensor
Packaging & Delivery
Packaging Details
Micro differential pressure transmitter pressure sensor 4-20ma 0-10VDC RS485
Antistatic plastic bags and Corrugated box.
Other package mode also can be customized.
Port
shenzhen, shanghai, beijing, tianjin, qingdao, etc
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Video Description
Pressure transmitter
Product Description

Description of Micro differential pressure transmitter pressure sensor 4-20ma 0-10VDC RS485

Micro differential pressure transmitter pressure sensor is for Clean Room Pressure, detect differential pressure or gauge pressure then convert this pressure difference to a proportional analogue output signal. Two output version are offered: Voltage output of 0~10VDC, and a current output 4-20mA. Its ranges from 0~±50Pa to 0~±10000Pa. These transmitters boast of their outstanding performance,high quality and economical pricing.

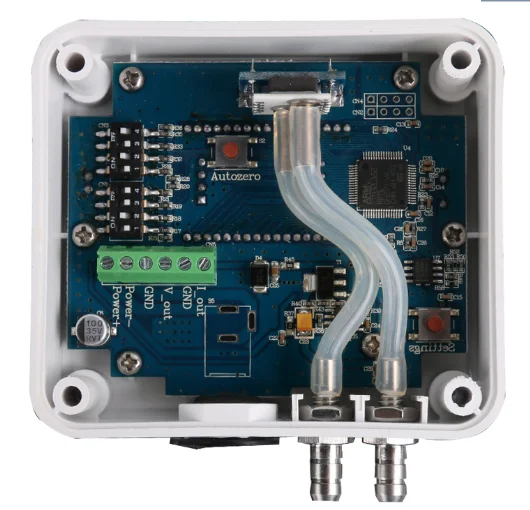

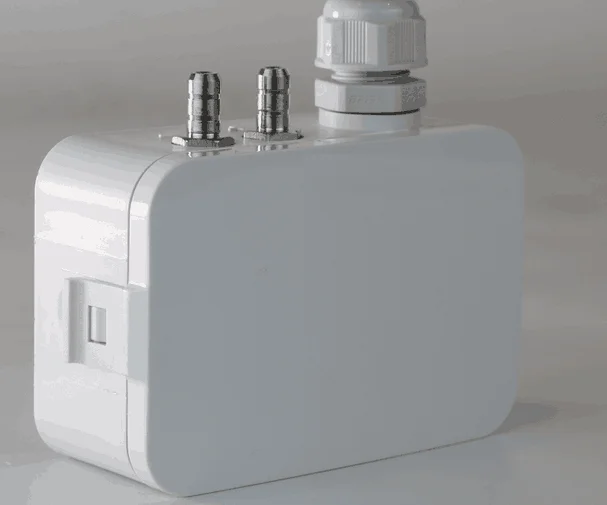

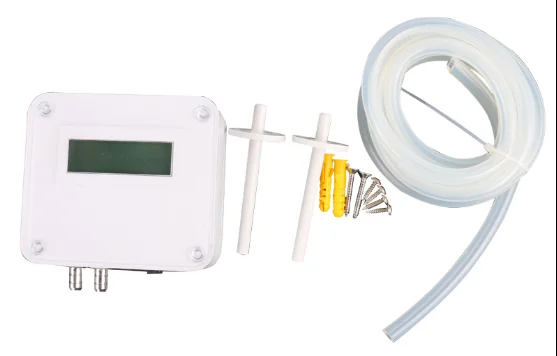

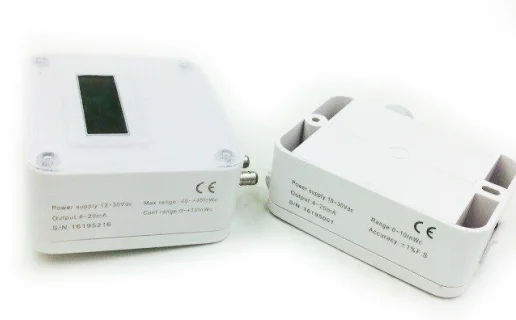

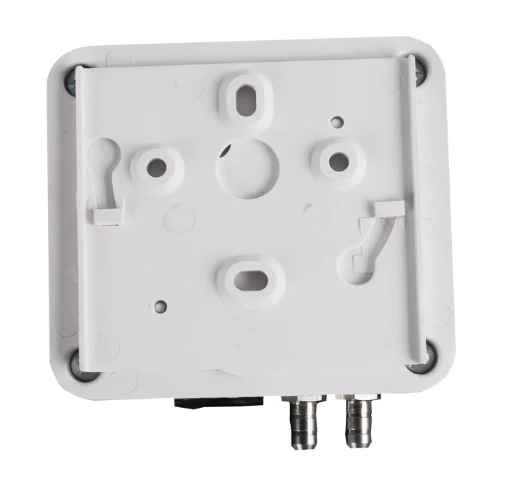

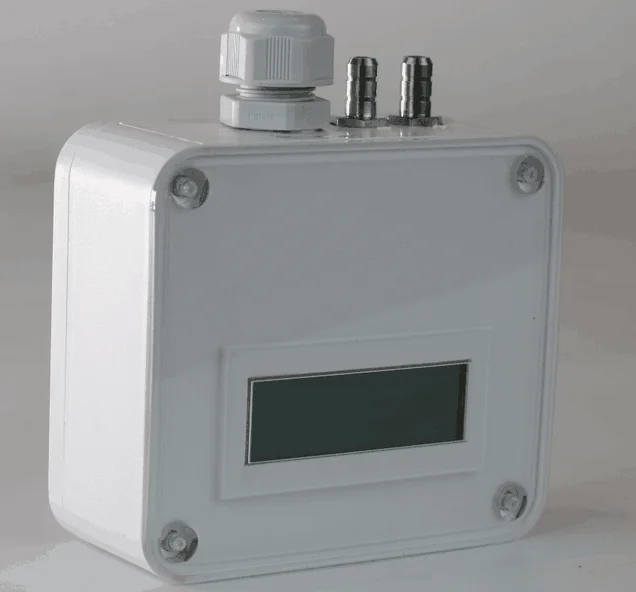

Detailed Images
Specification

Specification of Micro differential pressure transmitter pressure sensor

Range:0 ~ ±10Pa/0 ~ ±10,000Pa
Accuracy:±1.0%
Supply Voltage:16 ~ 30VAC/VDC (2-wire)
Output signal:0~5VDC、0~10VDC、4~20mA
both 2- wire and 3-wire available
Auto zero point when power on
Selectable response time field adjustable from20mS ~2S
Manual zero point push button

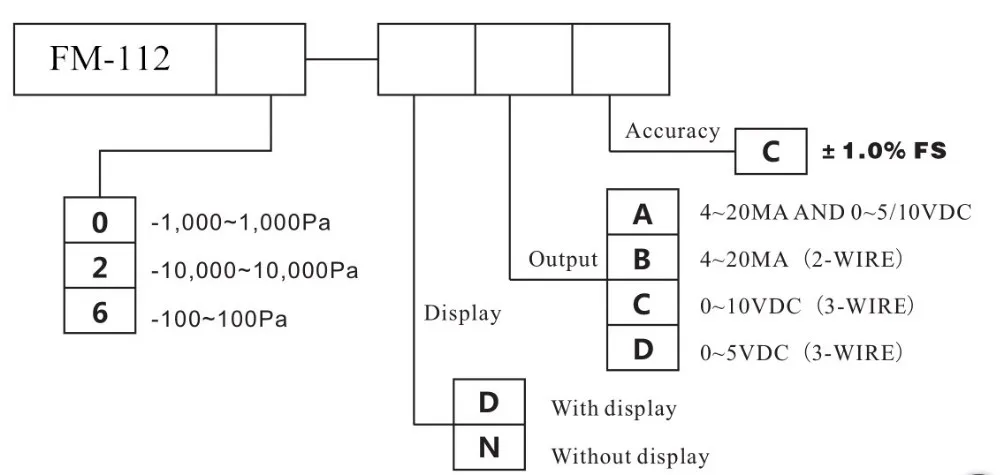

Unidirectional
Bidirectional
Output
101G = 0-100Pa
051D = 0±50Pa
AL = 4~20mA
251G = 0-250Pa
101D = 0±100Pa
VL = 0~10VDC
501G = 0-500Pa
251D = 0±250Pa
VZ = 0~5 VDC
102G = 0-1000Pa
501D = 0±500Pa
252G = 0-2500Pa
102D = 0±1000Pa
502G = 0-5000Pa
252D = 0±2500Pa
103G = 0-10,000Pa
502D = 0±5000Pa
103D = 0±10,000Pa
Feature

Feature of Micro differential pressure transmitter pressure sensor


Material: Industrial plastic,fire resistance, level per UL94-V0.
Pressure connection: Ribbed Ø 6.2 mm
Cable gland: For cables Ø 8 mm maximum
Weight: 140g

Application

Application of Micro differential pressure transmitter pressure sensor

Heating, Ventilation and Air Conditioning (HVAC)
Energy Management System
Static Duct Pressure
Clean Room Pressure
Over Pressurization and Furnace Draft Control
Media:Air and neutral gases.
