diffuse silicon ceramic pressure transmitter

  • 1 - 49 Units
    $25.20
  • 50 - 99 Units
    $21.20
  • >=100 Units
    $18.20
Material:
ss316
Accuracy:
0.255
Type:
diffuse silicon pressure transmitter diffuse silicon transmitter absolute pressure transmitter gauge pressure transmitter
Pressure Range:
0-100mpa
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Yunyi
Model Number:
YDPS
Item:
diffuse silicon ceramic pressure transmitter
range:
0-0.1bar to 0-1000bar
Application:
Automobile, compressor and refrigeration Industry
stability:
≤ 0.05 % F.S
Accuracy:
<=0.25{0.125}(BFSL)<=0.5{0.25}
Power supply:
5V output 0.5-4.5V / 1-5V / 0-5V
output:
4-20mA, 0-20mA, 0-5V,0-10V and others
Sensor:
Piezoresistive sensor and thin-film sensor technology
Case material:
stainless steel
Thread:
G1/4, G1/2 1/4NPT, 1/2NPT and others
Supply Ability
Supply Ability:
600 Unit/Units per Month diffuse silicon ceramic pressure transmitter
Packaging & Delivery
Packaging Details
diffuse silicon ceramic pressure transmitter
Antistatic plastic bags and Corrugated box.
Other package mode also can be customized.
Port
any port in china
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Video Description
Yunyi Instrument
Product Description

diffuse silicon ceramic pressure transmitter Description

diffuse silicon ceramic pressure transmitter are precision engineered to fit most industrial pressure measurement applications. The compact, rugged design makes these instruments suitable for applications including hydraulics and pneumatics, vacuum, test equipment, liquid level measurement, press control, compressor control, pump protection and numerous other processing and control operations. A wide range of electrical connection and process connection options are avail-able to meet almost any requirement.

diffuse silicon ceramic pressure transmitter features

Measurement Range: 0-0.1bar to 0-1000bar
Piezoresistive sensor and thin-film sensor technology
Standard ranges available from stock
4-20 mA 2-wire output signal, others available
Highly resistant to pressure spikes and vibration
Stainless steel case and wetted parts
Can be assembled to diaphragm seals for special applications

Application

diffuse silicon ceramic pressure transmitter application

Automobile, compressor and refrigeration Industry
Engineering machinery pressure control and monitor
Energy and water treatment system
Armarium, agricultural machinery
Hydraulic and pneumatic control system
Iron and steel industry, light industry
Pump, fitness equipment, household appliances
Hydraulics and pneumatics
Liquid level measurement

Specification
Item
diffuse silicon ceramic pressure transmitter
Pressure range
0-0.1bar to 0-1000bar
Materials
Gas or liquid compatible with stainless steel
O-ring
NBR (FKM or EPDM)
Signal output
4-20mA, 0-20mA, 0-5V,0-10V and others
Power supply
12-36VDC
Electric Interface
L plug interface, Circular plug interface, Wire output, With cable
Auxiliary power supply
10<UB=<30VDC(the output signal is 1-10v when 14-30)
Accuracy
<=0.25{0.125}(BFSL)<=0.5{0.25}
Nonlinear
<=0.2(BFSL) according to IEC 61298-2
Medium temp
-30-100°C
Wetted part material
stainless steel
Connection
G1/4, G1/2 1/4NPT, 1/2NPT and others
Shock resistance
1000g according to IEC 60068-2-27 (mechanical shock)
Vibration resistance
20g according to IEC 60068-2-6 (vibration under resonance)

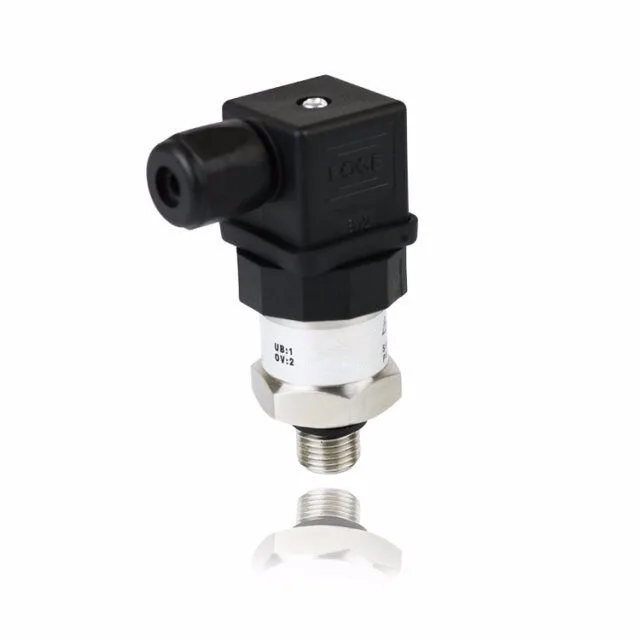

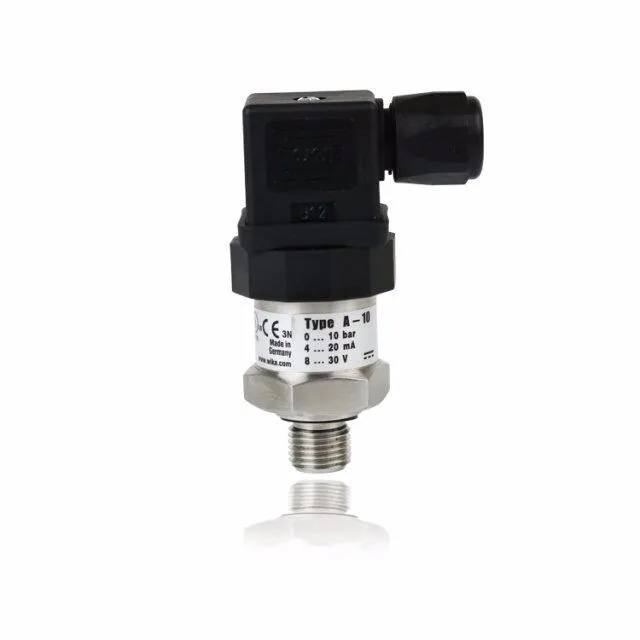

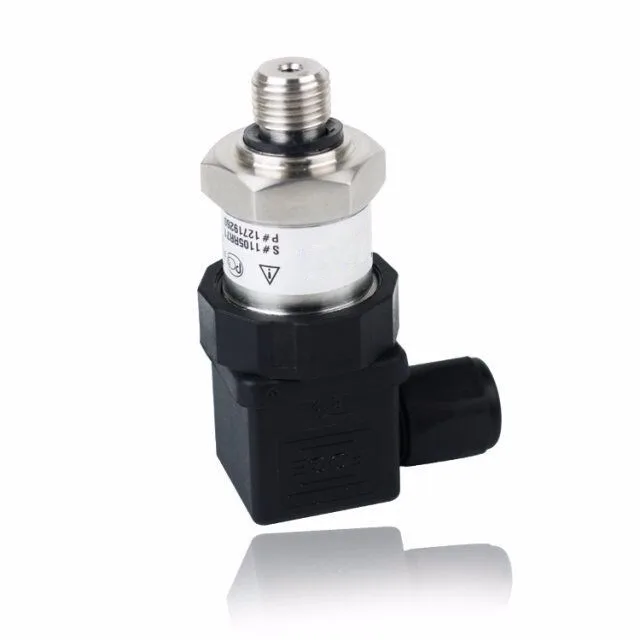

Detailed Images
