micro air differential pressure gauge

FOB Reference Price:Get Latest Price
$15.20 - $30.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
yunyi
Model Number:
YD2000
Item:
micro air differential pressure gauge
Weight:
0.25kg/pc
Dial size:
4" (100mm) inner
Warranty:
12 months
Accuracy:
±2% of Full scale
Range available:
±60kpa
Working temp:
20- 140 °F(-6.67 to 60°C)
Process connection:
1/8"NPT
Original:
china, xian
Port:
shanghai, beijing, shenzhen, erlian
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month Micro differential pressure gauge
Packaging & Delivery
Packaging Details
micro air differential pressure gauge
Corrugated cardboard boxes outer and foam paper inner
Port
shanghai,beijing,tianjin,erlian,shenzhen, guangzhou
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 10 To be negotiated
Pressure Gauge
Product Description

description of micro air differential pressure gauge

The micro differential pressure gauge used to measure fan and blower pressure, filter resistance, wind speed, furnace pressure, orifice plate differential pressure, bubbles water level and liquid amplifier or hydraulic system pressure. It using frictionless magnetic components, can rapidly measure the micro-pressure air or non-corrosive gases, including positive, negative (vacuum) or differential.

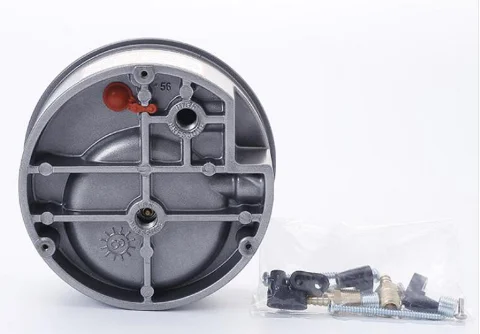

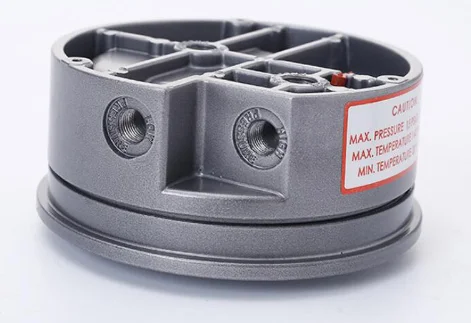

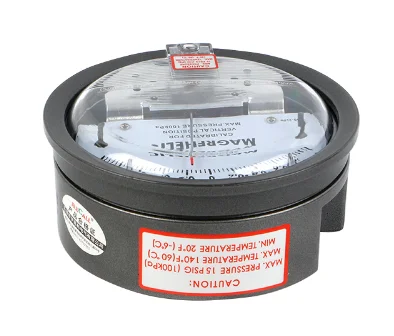

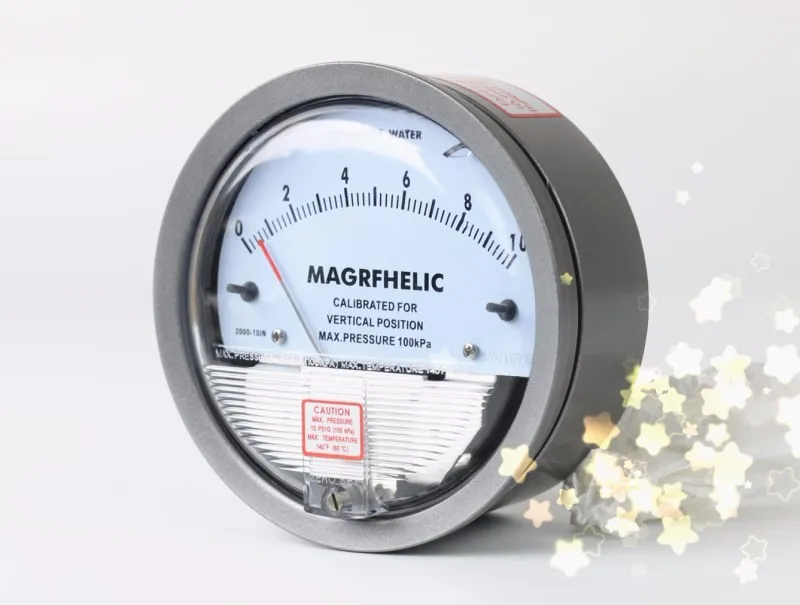

Detailed Images
Specification
Item
micro air differential pressure gauge

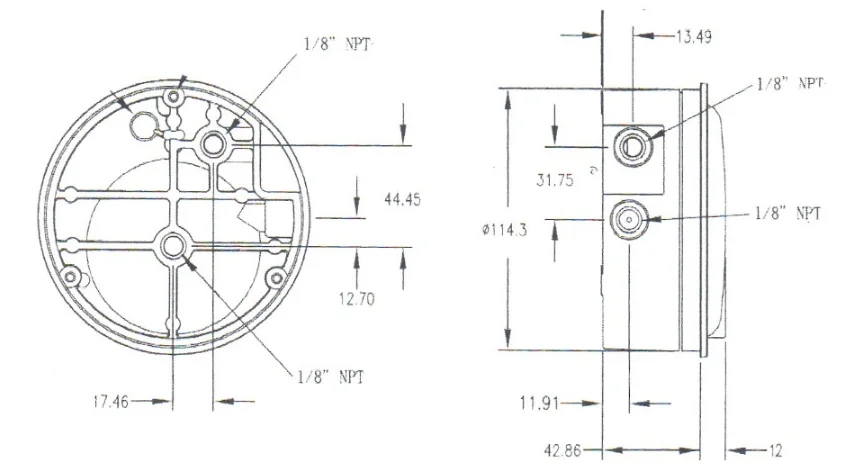

Gauge Size
4"dia. x 2-3/16"deep.
Accuracy
±2% of Full scale ( ± 3% on 0,-100Pa,-125Pa,100mm and ± 4% on -00,-60pa,-6mm ranges)
Range available
-20 inHg to 15 psig, (-0.677 bar to 1.034 bar)
Over pressure
Relief Plug opens at approximately 25psig(1.72bar) standard gauges only
Temperature Limits
20- 140 °F(-6.67 to 60°C)
Mounting Orientation
Diaphragm in vertical position , cousult factory for other position .
Process connection
1/8”NPT ,dupliate high and low pressure taps –one pair side and one pair back .
Standard Gauge accessories
include two 1/8”male NPT plugs for duplicate pressure taps, two 1/8”male NPT pipe thread to Rubber tubing adapters, and three flush mounting adapters with screws.
Common Range
Customized Range
0 – 30Pa
0 – 400Pa
0 – 2.5KPa
0 – 30KPa
-1~0~1KPa
0 – 60Pa
0 – 500Pa
0 – 3.0KPa
-15~0~15Pa
-2~0~2KPa
0 – 100Pa
0 – 600Pa
0 – 5.0KPa
-30~0~30Pa
-3~0~3KPa
0 – 125Pa
0 – 750Pa
0 – 8.0KPa
-60~0~60Pa
-4~0~4KPa
0 – 200Pa
0 – 800Pa
0 – 10KPa
-125~0~125Pa
-5~0~5KPa
0 – 250Pa
0 – 1KPa
0 – 15KPa
-250~0~250Pa
-10~0~10KPa
0 – 300Pa
0 – 2KPa
0 – 25KPa
-500~0~500Pa

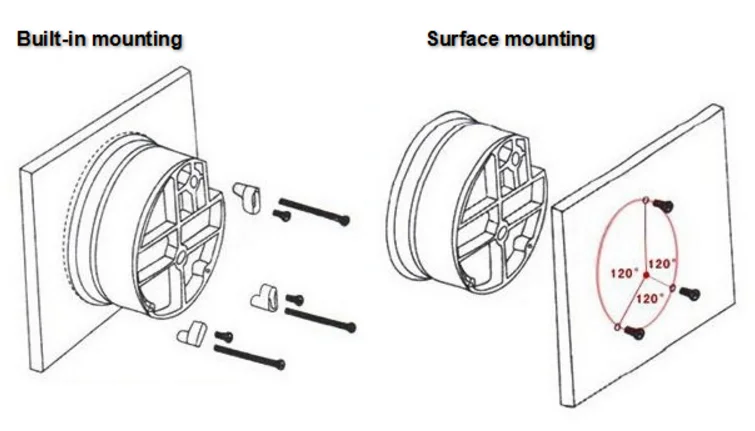

Mounting

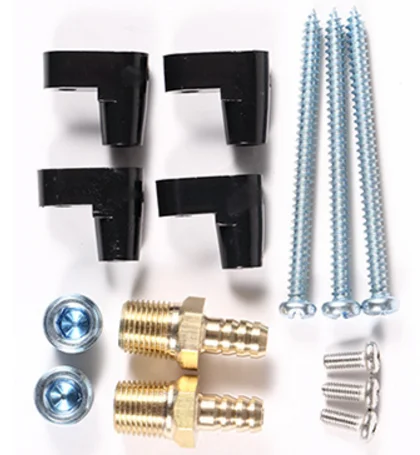

fitting of air differential pressure gauge


1/8'' male NPT plugs for duplicate pressure taps 2pcs
1/8'' NPT male NPT pipe thread to rubber tubing adapters 2pcs
flush mounting adapters with screws 3pcs
