Smart 2 wire oil pressure differential transmitter transducer

FOB Reference Price:Get Latest Price
$112.20 - $150.20 / Units | 1 Unit/Units (Min. Order)
Material:
Wetted: ss316
Accuracy:
0.5%FS
Type:
diffuse silicon sensor
Pressure Range:
0-2MPa
Lead Time:
Quantity(Units) 1 - 100 >100
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
Yunyi
Model Number:
YD40
Item:
Smart 2 wire oil pressure differential transmitter transducer
Output:
4-20ma,0-5v,0-10v
Measure range:
0-60mpa
Connection:
M20*1.5, 1/2NPT,1/4NPT
Power supply:
24vdc, 12vdc
Packing weight:
0.25lg
Delivery time:
4-15 days according to quantity
warranty:
12 months
port:
shenzhen, shanghai, tianjin, beijing, erlian
Original:
made in china
Supply Ability
Supply Ability:
1000 Unit/Units per Month oil pressure transducer
Packaging & Delivery
Packaging Details
Smart 2 wire oil pressure differential transmitter transducer
Corrugated cardboard boxes outer and foam paper inner
packing size: 4x5x14cm
Port
shenzhen, shanghai, beijing, tianjin, qingdao, erlian
Lead Time :
Quantity(Units) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Pressure transmitter
Product Description

Description of Smart 2 wire oil pressure differential transmitter transducer

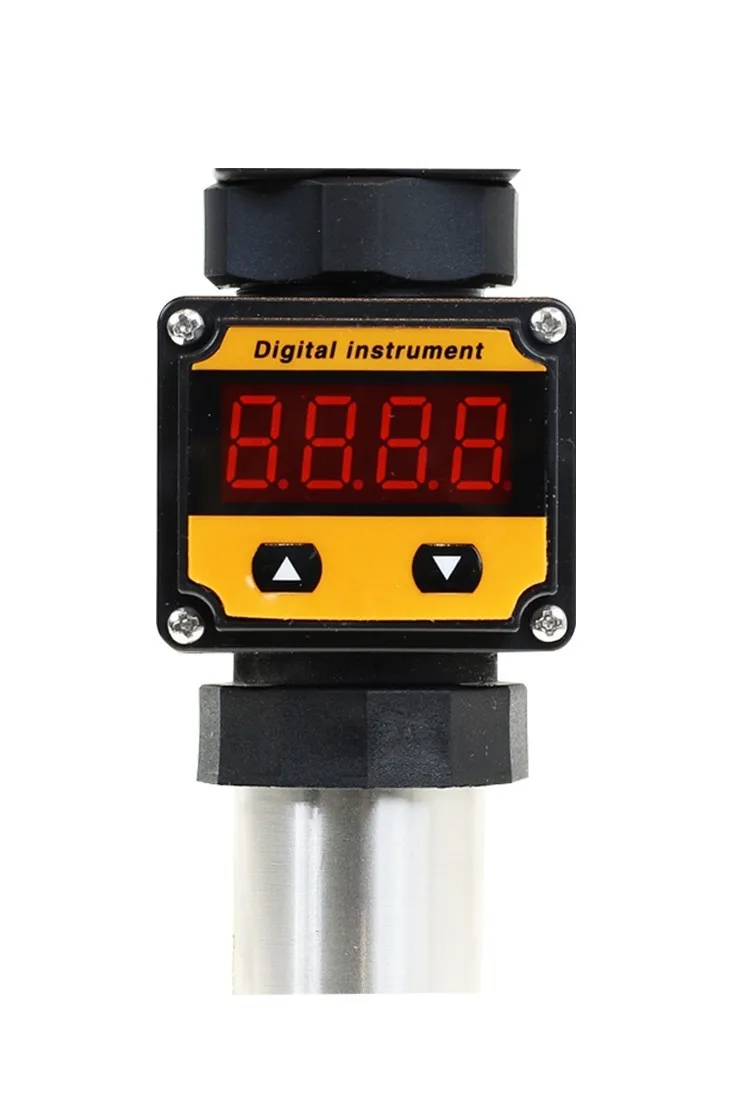

2 wire oil pressure differential transmitter transducer is diffused silicon differential transmitters are consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Differential pressure transducer also can build high-performance microprocessor(MCU)which can correct nonlinearity and compensate temperature drift. This LED differential pressure transmitter achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication. This 2 wire pressure transmitter with high quality and very low price, and high stability. The transmitter can used in all kinds industry.

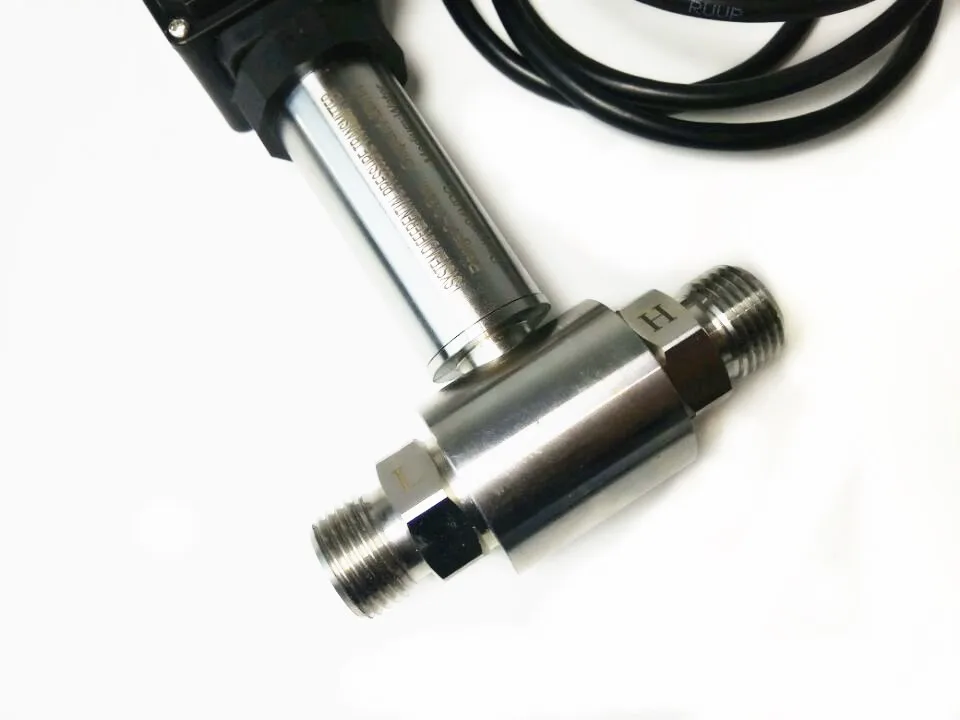

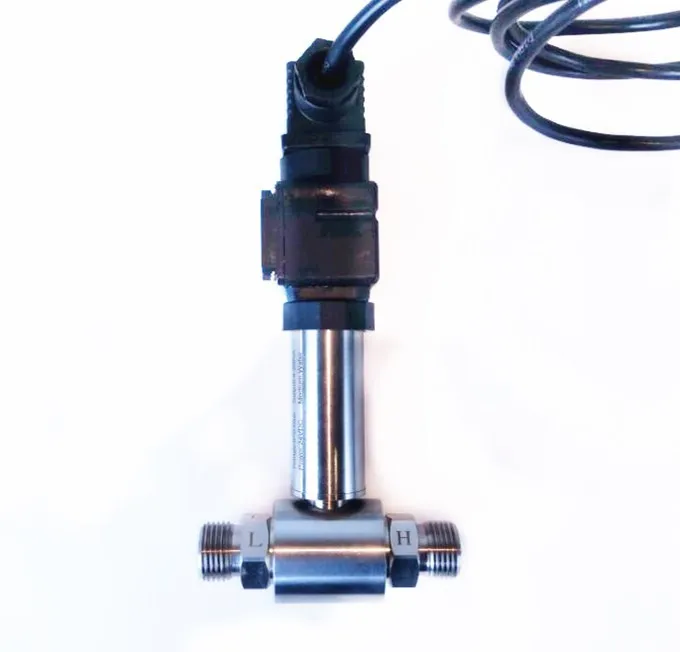

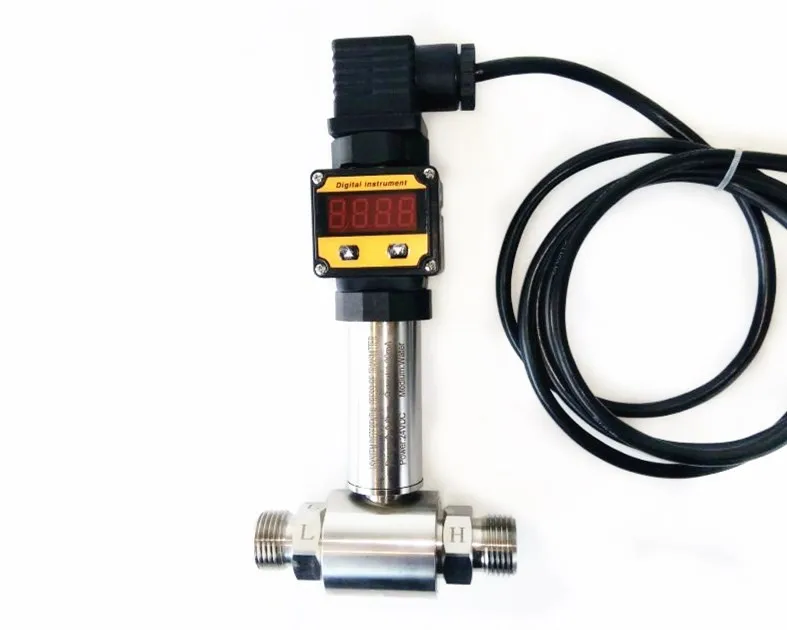

Detailed Images
Specification
Item
pressure differential transmitter transducer
Item
2MPa dp differential pressure transducer
Measurement Range
0~20Kpa…..35Kpa...~2MPa
Medium
Liquids or gases that can compatible with 316SS
Proof pressure
3X rated range or 7MPa(Which ever is less)
Accuracy
±0.25%(Typical) ±0.5%(Max.)
Static pressure
5X rated range or 7MPa which ever is less
Temperature Error- Zero
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
Temperature Error -Span
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
OperatingTemperature
-20℃~80℃
Power supply
12~30VDC
Output signal
4~20mA
Pressure port
M20×1.5 G1/2 or customize
Housing material
1Cr18Ni9Ti stainless steel
Diaphragm material
316L
O-ring
Fluororubber
Protection
IP65
Insulation resistance
100MΩ 100VDC
Feature

Feature of pressure differential transmitter transducer

Pass aging test,performance is reliable and stable
Various output signal
Scene adjustable
Protection: IP65
Marking:ExiaIICT6
CE certification

Application

Application of pressure differential transmitter transducer

 Compatible with 316LSS,noncorrosive gases & liquids
 Wind pressure & velocity of flow in industry process.
 Measuring pressure of pipeline &firepot
 Petroleum industry, chemical industry
 Meteorological monitoring.
